Description
Product details

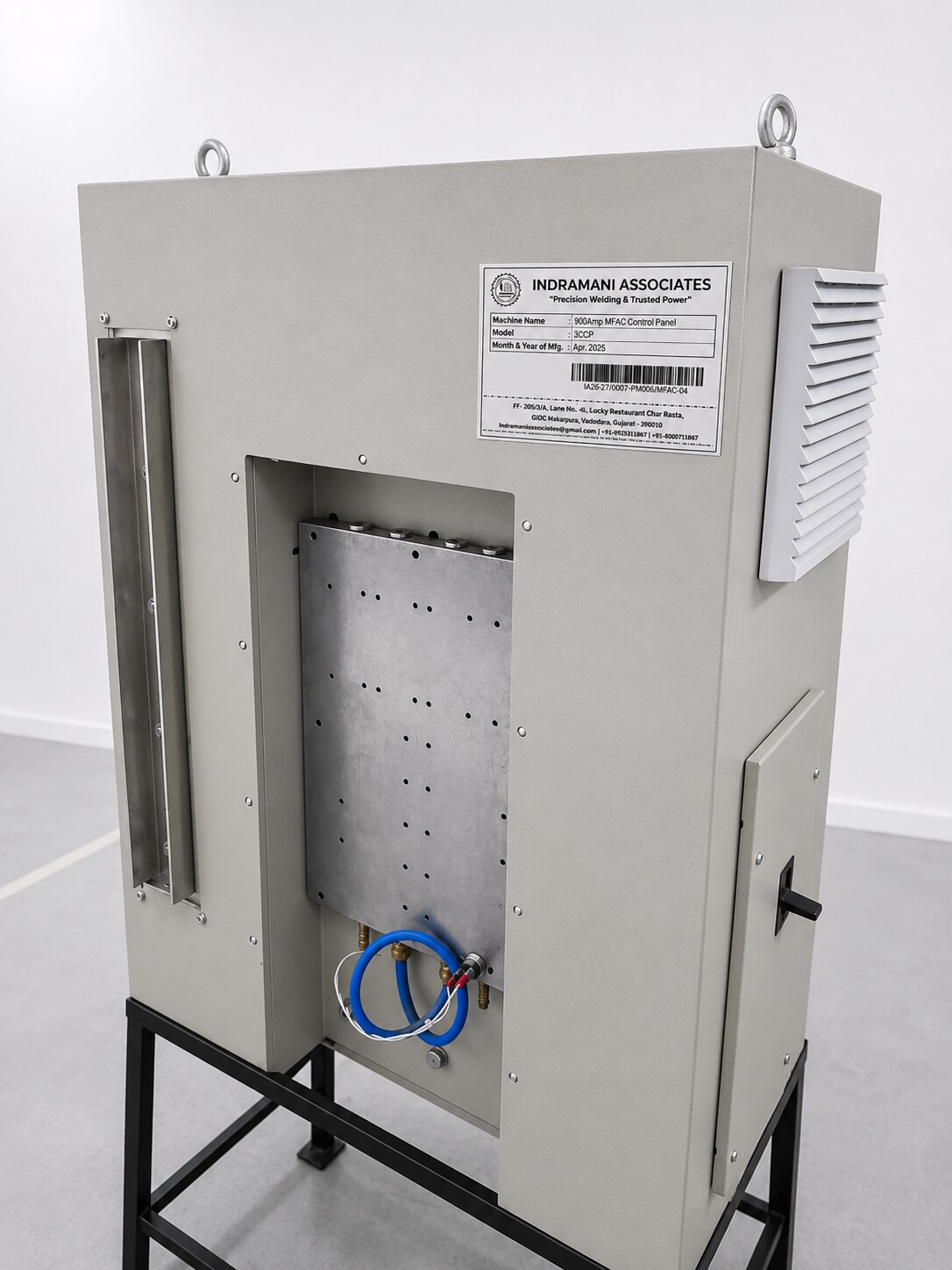

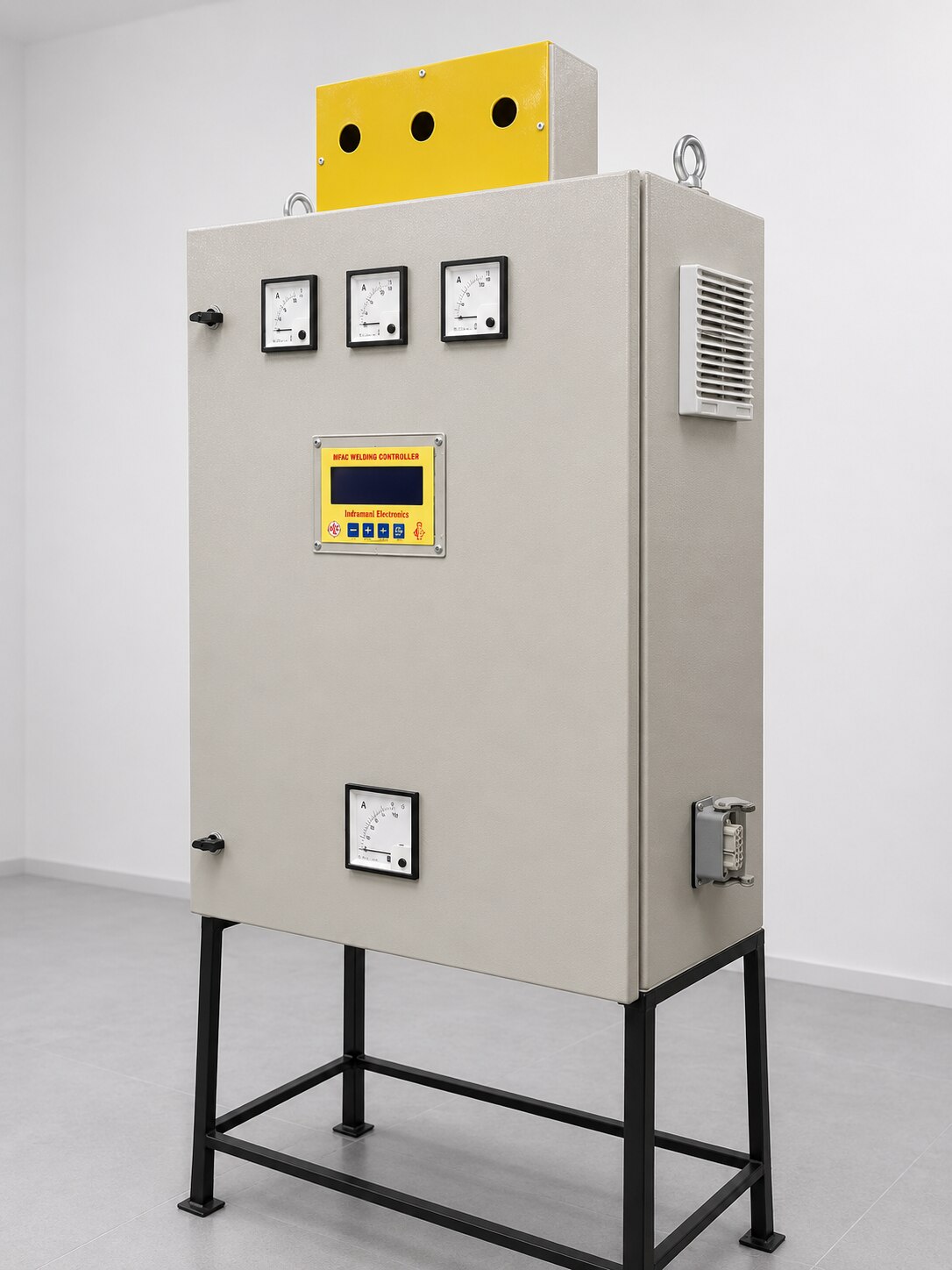

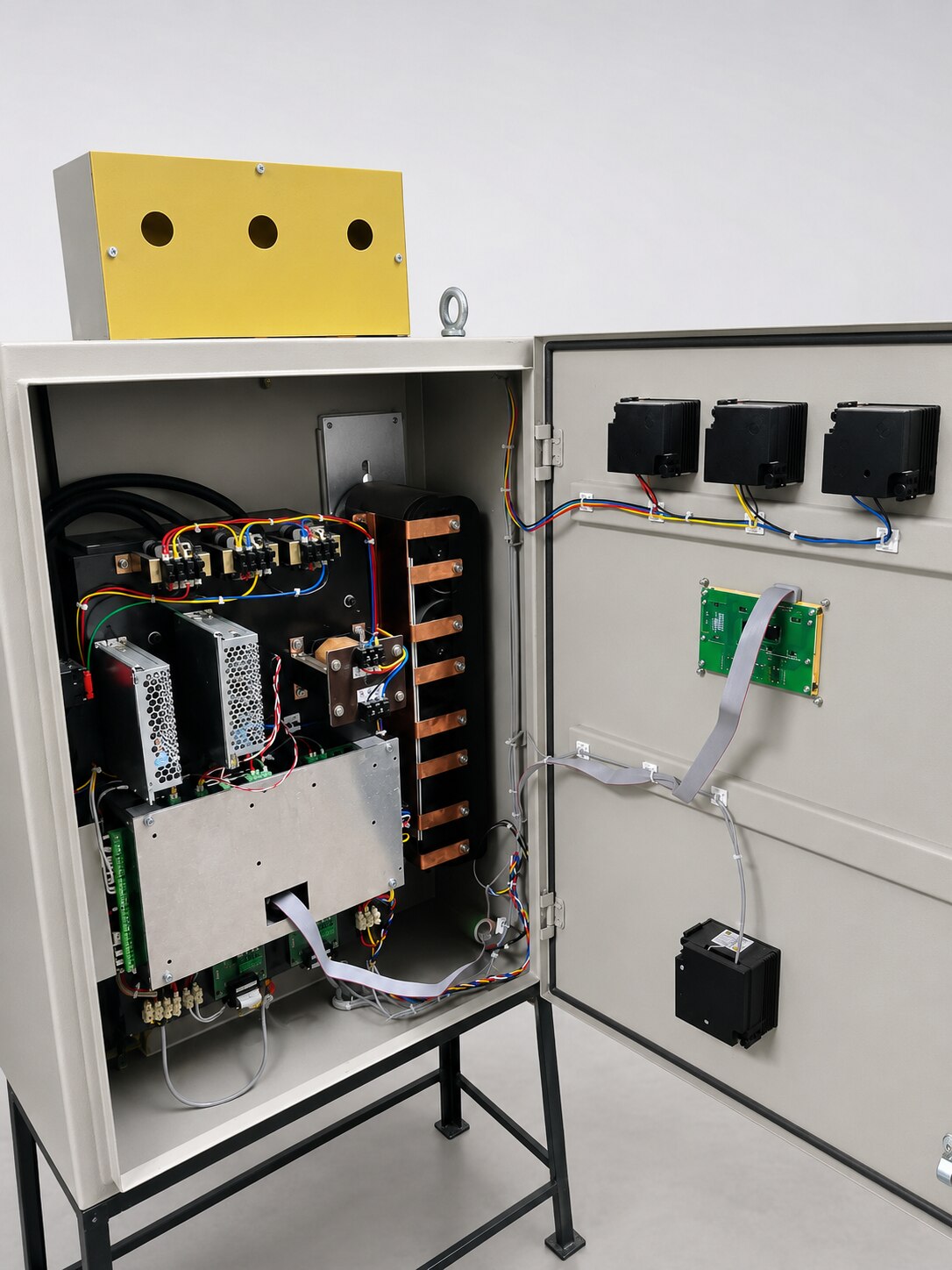

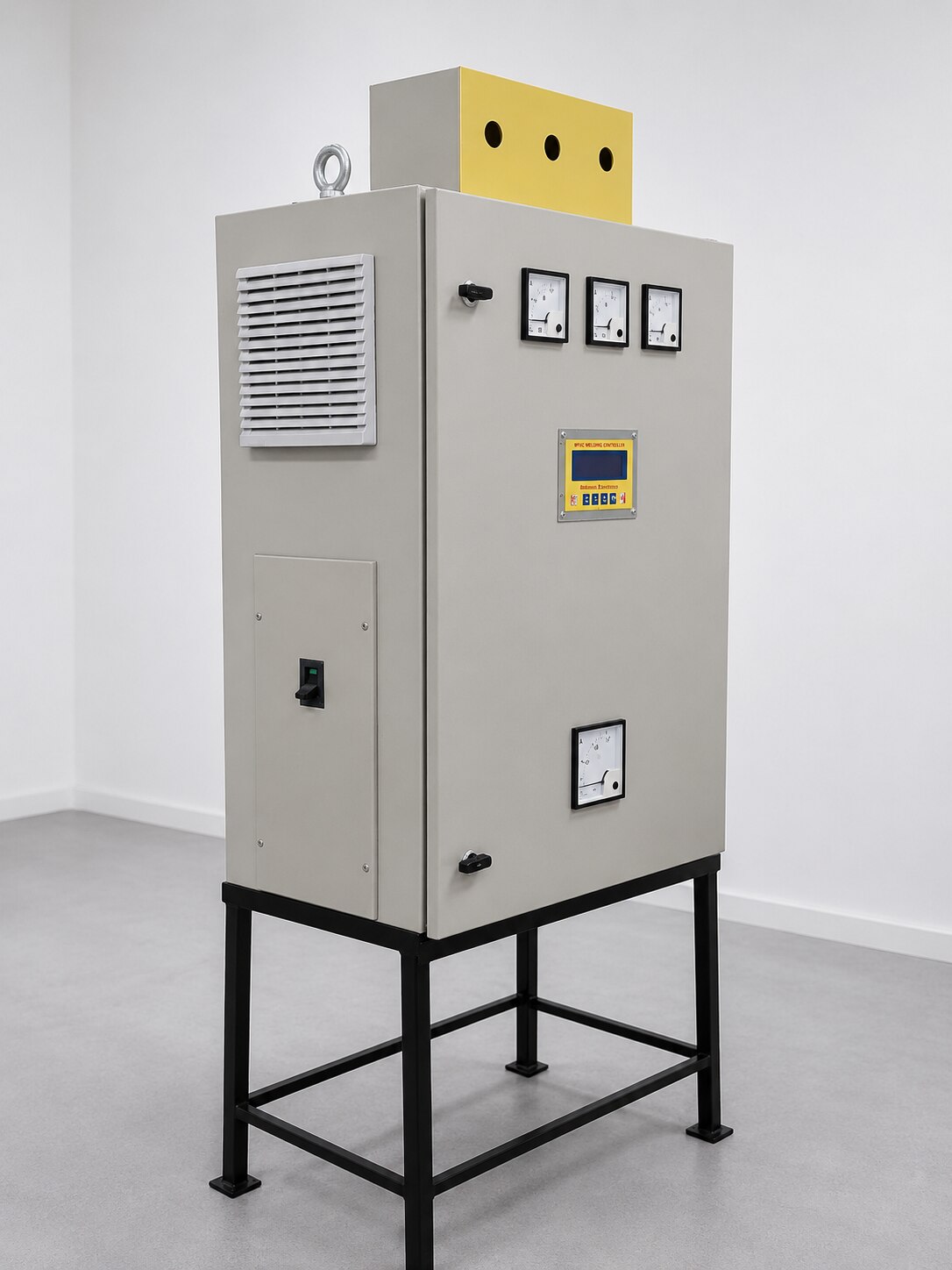

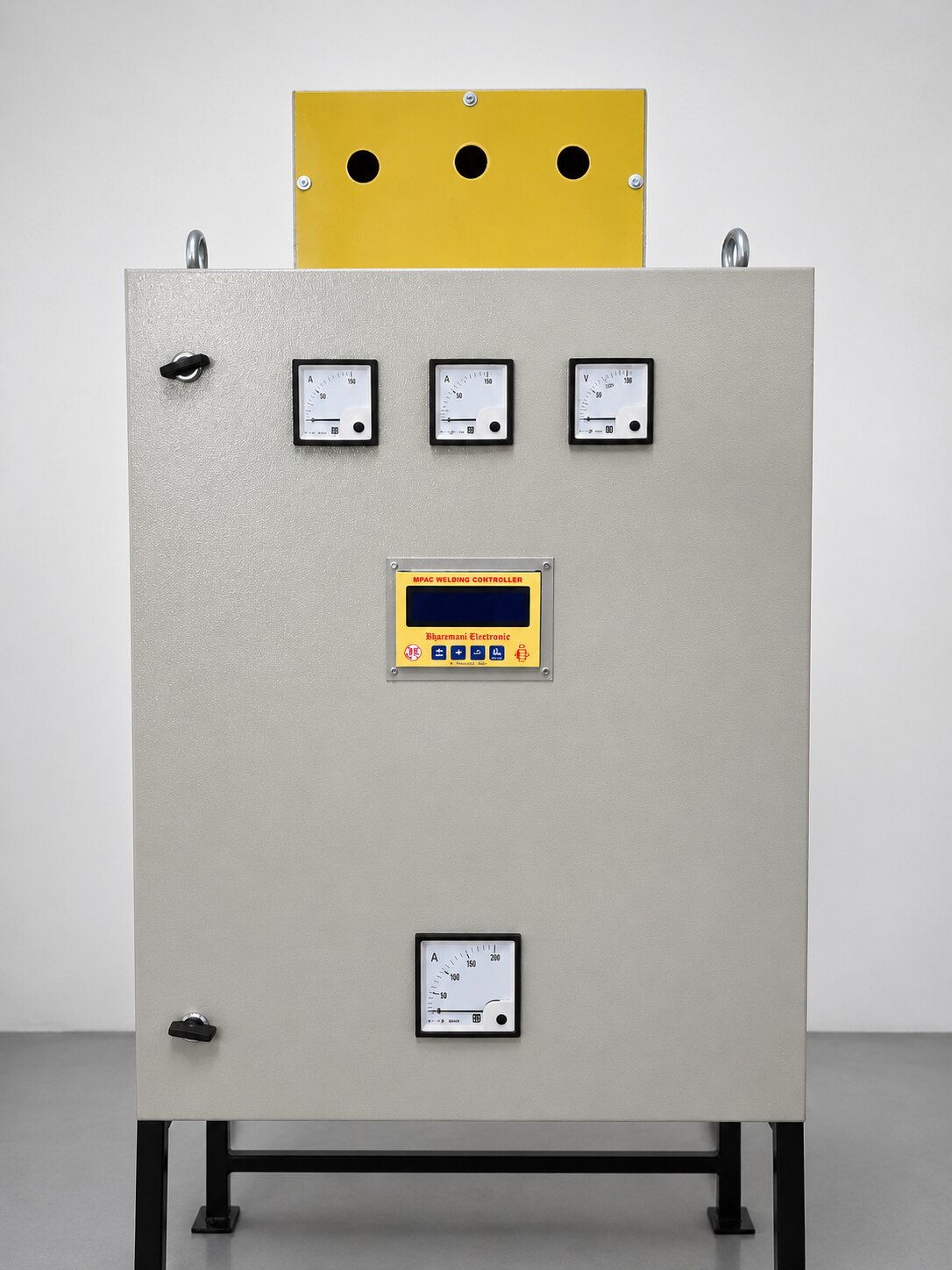

Product Overview The MFAC Welding Control Panel is a high-performance Medium Frequency AC welding controller designed for precision resistance welding applications. Engineered with advanced IGBT technology, intelligent protection features, and digital process control, it delivers stable welding current, excellent repeatability, and reliable operation for spot welding, seam welding, and customized automation systems. Key Features ✔ MFAC Technology for Stable Welding Performance ✔ Up to 1000 Amp Output ✔ IGBT-Based Power Switching ✔ Multiple Protection Functions ✔ User-Friendly HMI Interface ✔ Precise Current & Voltage Control ✔ Heavy-Duty Industrial Design ✔ Easy Installation & Maintenance Advantages Stable Welding Output Improved Weld Quality Energy Efficient MFAC Technology Fast Response Time User-Friendly Operation Low Maintenance Long Service Life Customization Available We can customize: Output Current Capacity HMI Configuration PLC Integration Transformer Compatibility Contact Information Vinit Jawali – General Manager +91-8460711607 indramani.vinit@gmail.com
![100 kVA + 100 kVA Pneumatic Dual Seam Welding machine for power transformer radiator Seam welding Machine with MFAC 2 Control Panel & 1 Synchronous Panel.
The full seam body is hot spray galvanized.
* Both m/c with separate A/C drive from Danfoss brand, the whole m/c is standard.
* Input supply: 3-phase 415 volt AC/50 Hz line current approx. 80 Amp average
* We provide a 180 Amp MCCB with a Control Panel - Indramani Associates make.
* Output: 2-phase line current approx. 180 Amp average
* Complete m/c & Controller design @ 50% Duty Cycle
Both m/c will have silver housing for longer life & maintenance-free working. Only daily greasing is required.
NOTE:
1. Control Panel & Silver Housing need a chilling water supply. [Chiller requirement under customer's scope: 1000L tank, 3 Ton Chiller plant for dual seam]
2. Rest of the m/c Transformer internal water cooling & welding wheel free flow water supply by separate room temperature water. (Cooling tower water)
3. All water should be soft, clean water to protect from scaling.
4. We provide the best quality machine with knurling drive at the top welding wheel & bottom only knurling self-drive.](https://productimages.withfloats.com/tile/6a43b745a71073d084c31dd9.png)
