Description

Product details

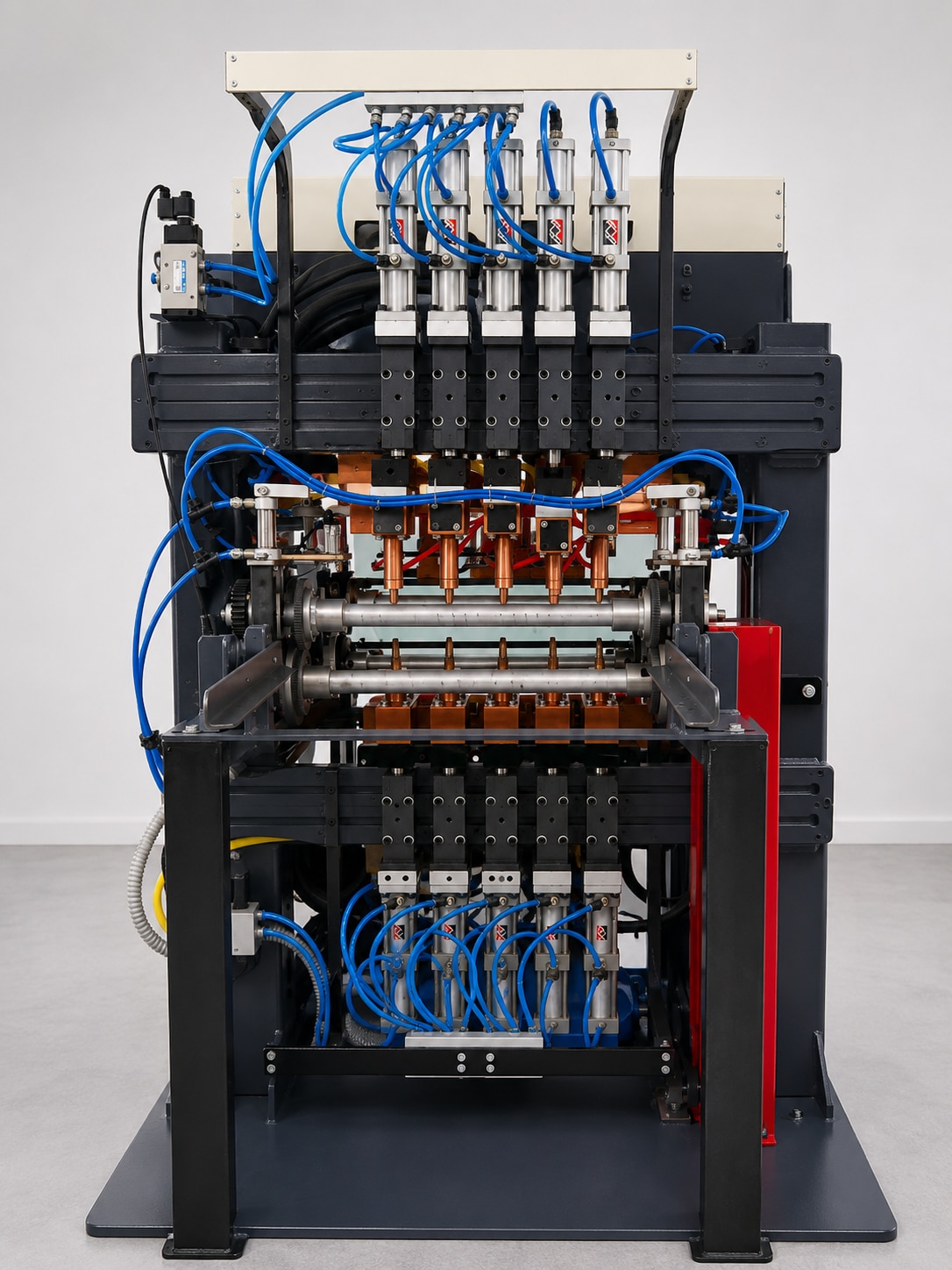

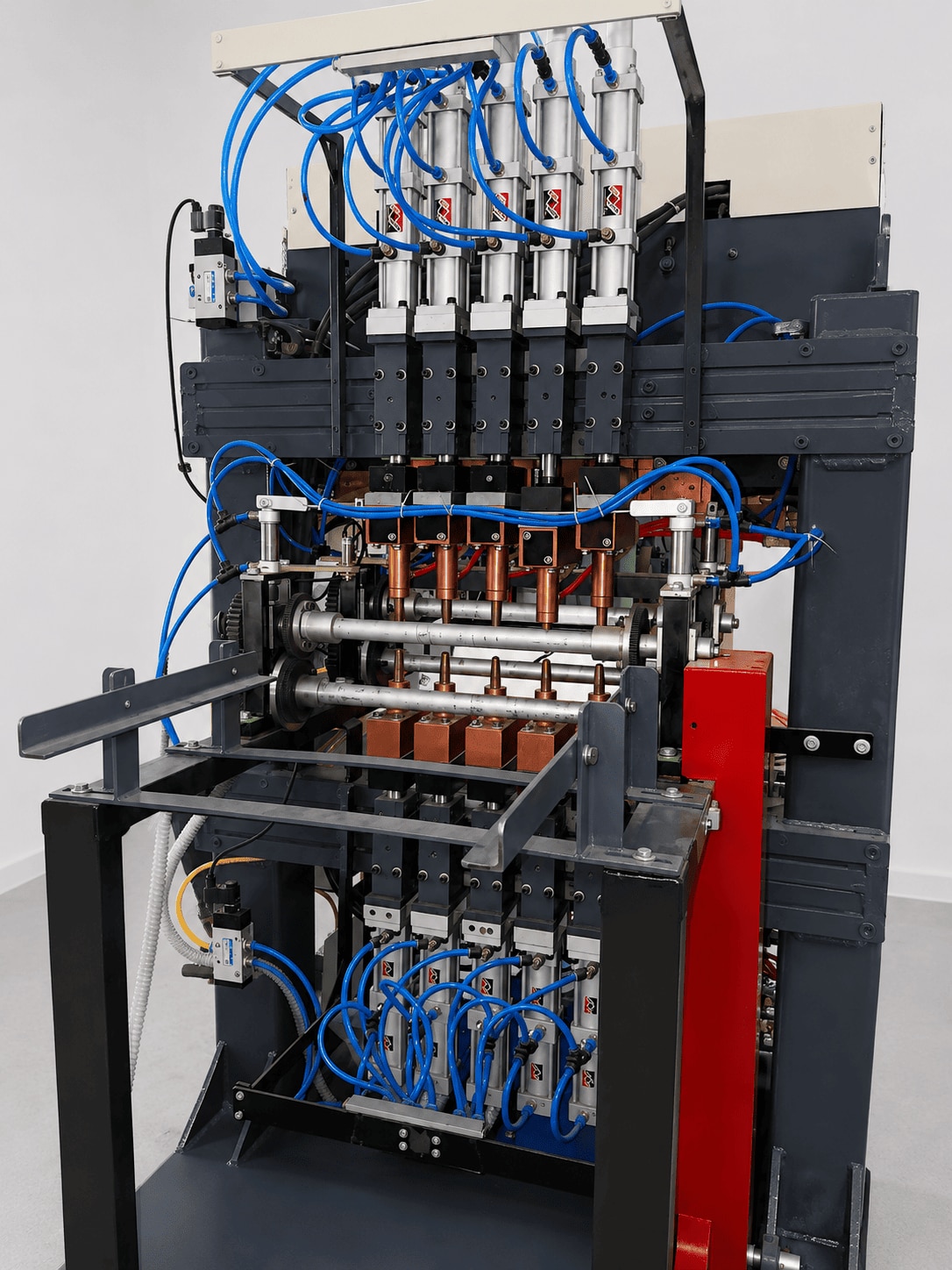

Product Overview The Pneumatic Multi-Spot Welding Machine is designed for high-speed, repeatable, and accurate welding of sheet metal assemblies, wire products, brackets, frames, mesh components, battery parts, and fabricated assemblies requiring multiple weld points in a single cycle. Technical Specifications Machine Type: Pneumatic Multi-Spot Resistance Welding Machine Welding Method: Resistance Spot Welding Number of Welding Heads: 5 spots/6 spots (As per customer requirement) Electrode Actuation: Pneumatic Cylinders Electrode Material: Copper Alloy Electrode Force: Adjustable Input Power Supply: 415V AC, 3 Phase, 50Hz Transformer Rating: Customized Duty Cycle: 50% Cooling System: Water-Cooled Control System: Universal Weld Controller Production Mode: Semi-Automatic / Automatic Machine Construction: Heavy-Duty Fabricated Steel Structure Machine Dimensions (L x W x H): 1700 mm x 1200 mm x 1500 mm (approx.) Key Features Simultaneous Multi-Point Welding Pneumatic Electrode Actuation Heavy-Duty Copper Alloy Electrodes Adjustable Welding Pressure Consistent Weld Quality Robust Industrial Construction Easy Setup and Maintenance PLC / HMI-Based Control (Optional) Water-Cooled Transformer and Electrodes Suitable for Continuous Production Advantages Higher Productivity Reduced Cycle Time Uniform Weld Quality Lower Operator Dependency Reduced Rejection Rate Long Service Life Low Maintenance Cost Customization Available Machine design, throat depth, welding head arrangement, transformer capacity, fixture design, automation level, and control system can be customized according to customer requirements.

Other Specifications
